Batch Weigher
- Suited for powders and granulates
- Integrates with multi-silo dosing
- Scalable capacity: 500–6,000 kg
View details
From grain to feed

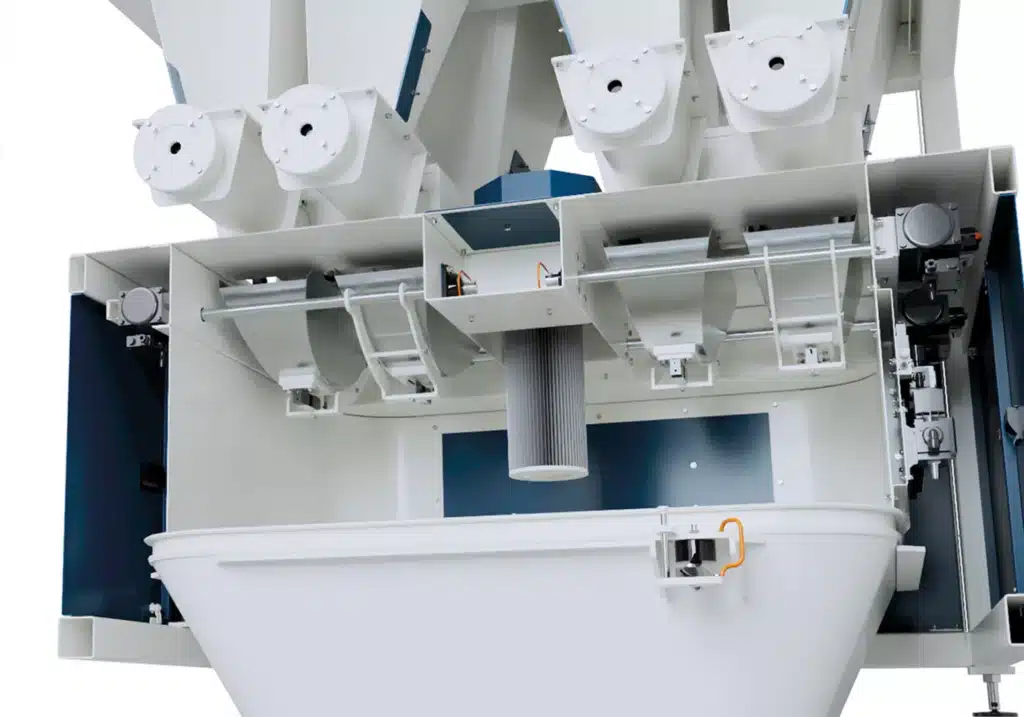

Micro Dosing Unit (MDU)
One of our newest innovations is the Ottevanger Micro Dosing Unit (MDU), developed in direct response to operators’ need for a modular and versatile solution that does it all - in everything from feed and pet food, to aquafeed and more.
- High dosing and weighing accuracy
- Extremely short cycle times achievable
- Very large control range, from extremely precise to very fast
One solution for all your dosing needs
Our MDU is the only solution on the market capable of dosing simultaneously on four weighers. This results in a unique combination of high throughput and extremely high accuracy for doses ranging from 100 grams to 500 kg. The MDU is also equipped with fully integrated automation control to manage dosing deviations and improve traceability and hygiene in recipe management. In addition, the unit is fitted with an agitator for poor-flowing products and, thanks to its modular design, can be expanded with additional silos.
Performance & Applications
Overview
Key benefits
Discover the key benefits of the Micro Dosing Unit (MDU)
- Suitable for complex recipes. Up to 8 dosing screws, 8 agitators and five integrated weighers (4 small, 2 large, 1 main), depending on the configuration.
- High capacity with precision. Small, large and main weighers cover typical ranges of 15, 30 and 500 kg respectively, with average absolute dosing deviations from 1 g (small), 1 g (large) and 10 g (main) at representative batch sizes.
- Wide control range and capacity options. Control range of approximately 1:1000. Screw sets available for high accuracy or high capacity dosing (approximately 3.5–9 m³/h, depending on execution).
- Hygienic, robust construction. All product contact parts in stainless steel; integrated, compact frame; total unit weight approximately 4,500 kg.
- Flexible layout. Suitable for a silo block up to 8 m³ on the frame; larger blocks possible via external support.
Available executions
- Dosing screws. Up to 8 units, selectable for high accuracy or high capacity.
- Agitators. Up to 8 units for difficult-to-handle products.
- Weighers. Combinations of 4 small weighers (≈15 kg), 2 large weighers (≈30 kg) and 1 main weigher (≈380 kg), with typical dosing volumes of 7.5–20 dm³ per screw (according to the specification table).
- Materials. All product contact parts are manufactured in AISI 304 stainless steel.
- Configurable cell block up to 8 cells; silo block up to 8 m³ on-frame, or larger with external support.
Reliable by design
Equipment
Inline Weigher
- Simple integration with PLC/SCADA
- Minimal product residue; easy to clean
- Compact, low-maintenance design
View details
Micro Dosing Unit (MDU)
- Modular, expandable dosing platform
- High weighing and dosing accuracy
- Parallel dosing with multiple screws
View details
Your questions answered
FAQ
The dosing section can be built with up to 8 screws and a cell block with up to 8 cells, allowing a large number of micro-ingredients to be automated.
Standard configurations include small/large “super” scales (≈15/30 kg) and a main weigher (≈500 kg). Average absolute dosing deviations are about 1 g (small), 1 g (large) and 10 g (main) at representative batch weights noted in the factsheet.
Yes. The MDU can run multiple screws (up to 4 in parallel) to shorten overall cycle time.
Compound feed, grains and seeds, pet food, aquafeed, premixes and concentrates, among others.
It is designed to work in-line with a central batch system; dosing accuracy and control range (~1:1000) support both precise and fast sequences as required.
Let's talk
Every successful project starts with a conversation.
No matter what your needs, we have all the equipment and process expertise to help you achieve it. Contact us today and let’s talk.
