From grain to feed

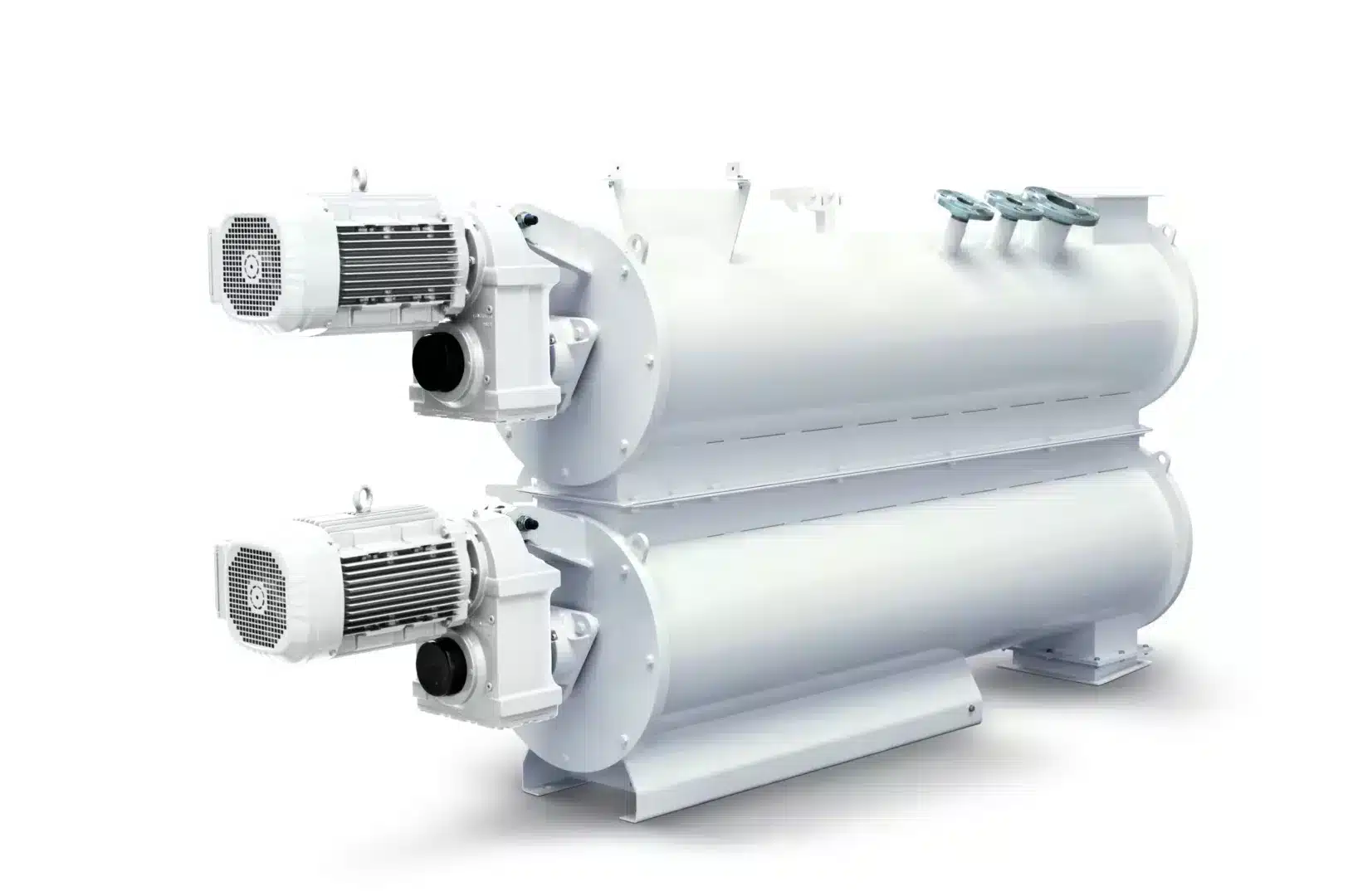

Twin Conditioner
The Twin Conditioner provides thorough, hygienic meal conditioning before pelleting or extrusion by doubling retention time with two vertically stacked chambers. Adjustable paddles ensure uniform mixing and optimal steam and liquid absorption. Its stainless steel design supports easy cleaning, long service life, and consistent conditioning for higher capacity and improved pellet quality.
- Doubled retention time for improved conditioning
- Homogeneous mixing and steam absorption
- Hygienic, durable stainless-steel design
Performance & Applications
Overview
Key benefits
Discover the key benefits of the Twin Conditioner
- Enhanced pellet quality through improved heat and moisture absorption.
- Two-stage conditioning process ensures consistent temperature and optimal feed treatment.
- Adjustable paddles provide flexibility for different products and formulations.
- Independent drives for each mixer shaft allow efficient operation and control.
- Heavy-duty construction with smooth internal surfaces for hygiene and reliability.
- Longer maintenance intervals and simplified service access reduce downtime.
Available executions
- Two stainless-steel conditioner housings with heavy-duty base frame.
- Dual solid shafts with Hardox paddles, adjustable in height and pitch.
- Stuffing box sealings and external bearing supports.
- Direct-drive gear motors suitable for frequency control (converter optional).
- Optional electric heat tracing, insulated with rock wool.
- Steam and liquid inlets: 1 × 3” steam, 2 × 1½” liquid.
- Temperature sensors (2 × PT100) for precise process control.
Sizes and capacities:
- 450 × 2,000 mm – 15 t/h – 2 × 9.2 kW
- 500 × 2,500 mm – 20 t/h – 2 × 15 kW
- 700 × 3,000 mm – 30 t/h – 2 × 18.5 kW
Downloads
Whitepaper: The Guide to Great Conditioning
Download
Technical Datasheet
Download
Reliable by design
Equipment
BOA Compactor
- High-quality pre-compaction for stronger pellets
- Optimized steam and liquid absorption
- Higher capacity with lower energy
View details
Steam Dosing Unit
- Superheated dry steam via steam-flash
- Steam temperatures up to ~140 °C
- Higher product heat with minimal fouling
View details
Your questions answered
FAQ
It doubles the retention time compared to a single conditioner, ensuring more uniform steam absorption and improved product quality.
By maintaining consistent temperature and moisture distribution, it enhances starch gelatinization and pellet durability.
All product-contact parts are made of AISI 304 stainless steel with a heavy-duty base frame for durability and hygiene.
Yes, the adjustable paddles and independent drives allow it to process a wide variety of meals and recipes.
An optional electric heat tracing system with rock-wool insulation prevents condensation and maintains optimal temperature.
