Bucket Elevator

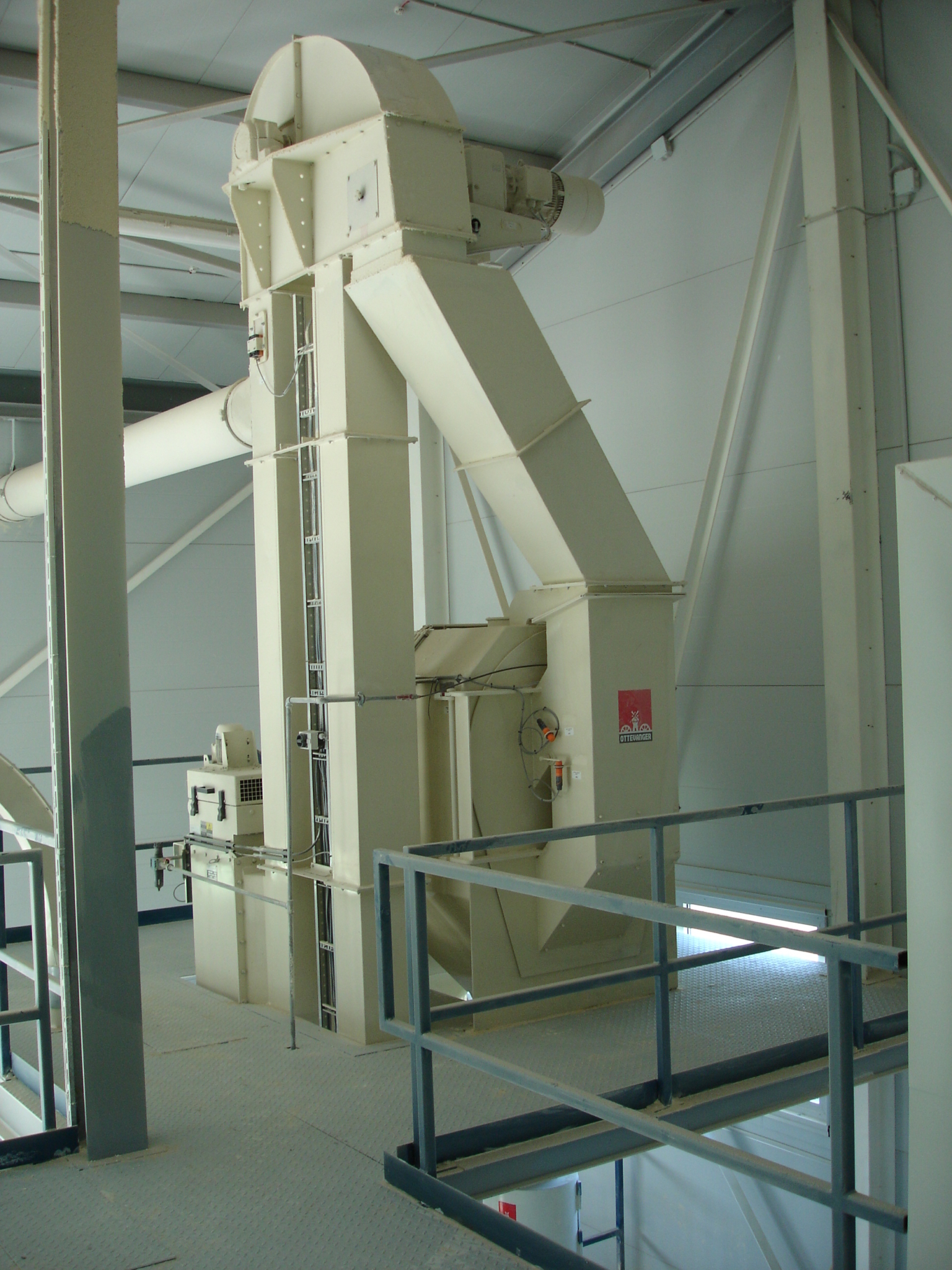

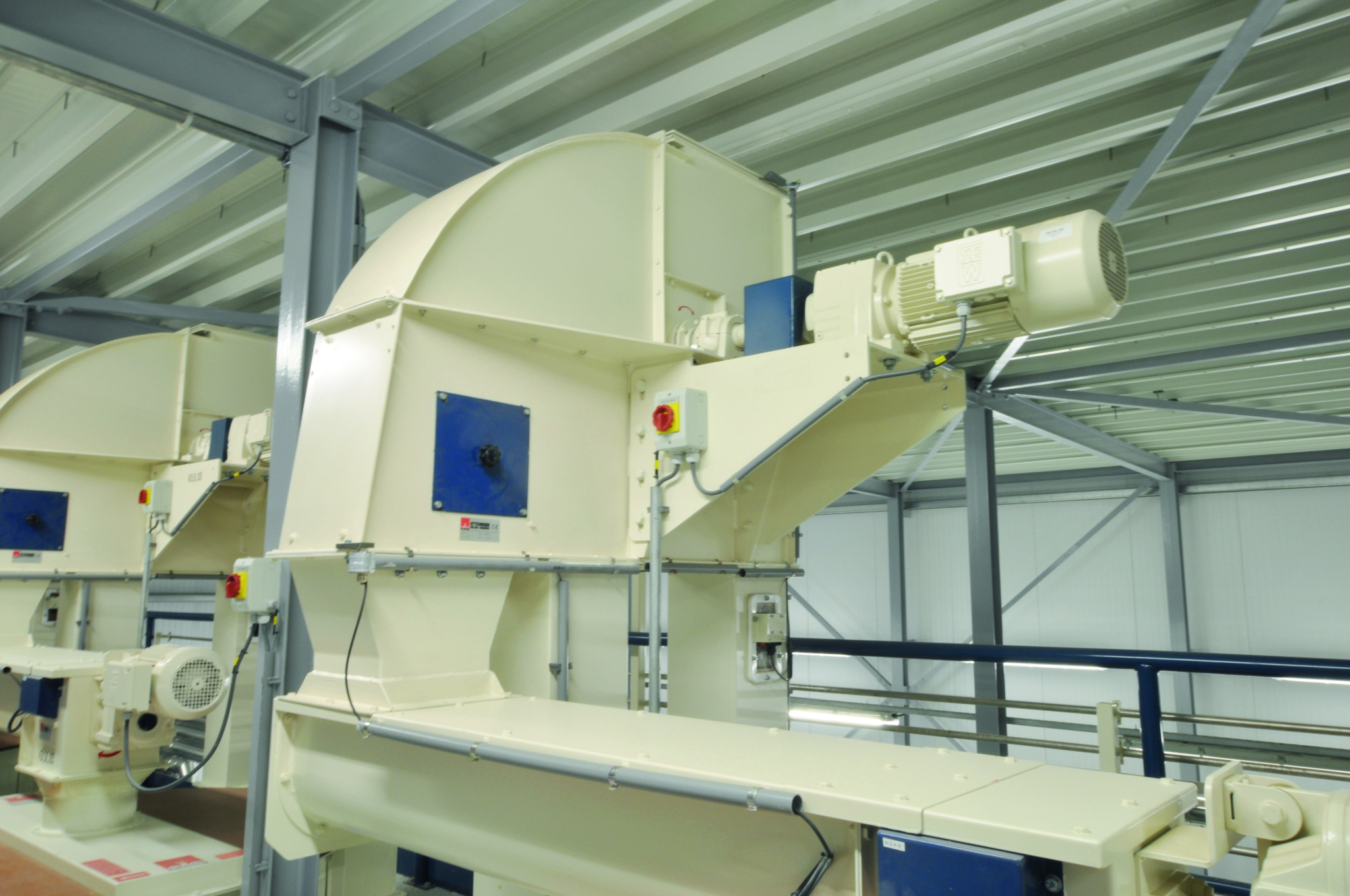

Ottevanger bucket elevators are designed for reliable, enclosed vertical transport of a wide range of bulk materials, both granular and powders. Two belt speed regimes are used: 1.8 m/s for gentle handling of pellets or sticky products such as meal, and 2.6 m/s for maximum capacity with grains and other free-flowing granulates. Depending on execution and product, capacities are available up to 500 m³/h.
- Gentle or high-capacity speeds (1.8/2.6 m/s)
- Oil/fat-resistant belt
- Stainless, galvanized & ATEX options
Performance & Applications
Overview
Key benefits
Discover the key benefits of the Bucket Elevator, designed for reliable, enclosed vertical conveying of powders and granular products.
- Enclosed steel construction
- Gentle or high-capacity operation (1.8 / 2.6 m/s)
- Wear-protected conveying path
- Reliable belt tensioning and tracking
- Quick maintenance via service hatches
- Oil and fat-resistant belt (acid-resistant)
- ATEX and explosion-relief options
Available executions
All machines can be customized to match product type, capacity, and site conditions.
- AISI 304 stainless-steel execution
- Galvanized S235 execution

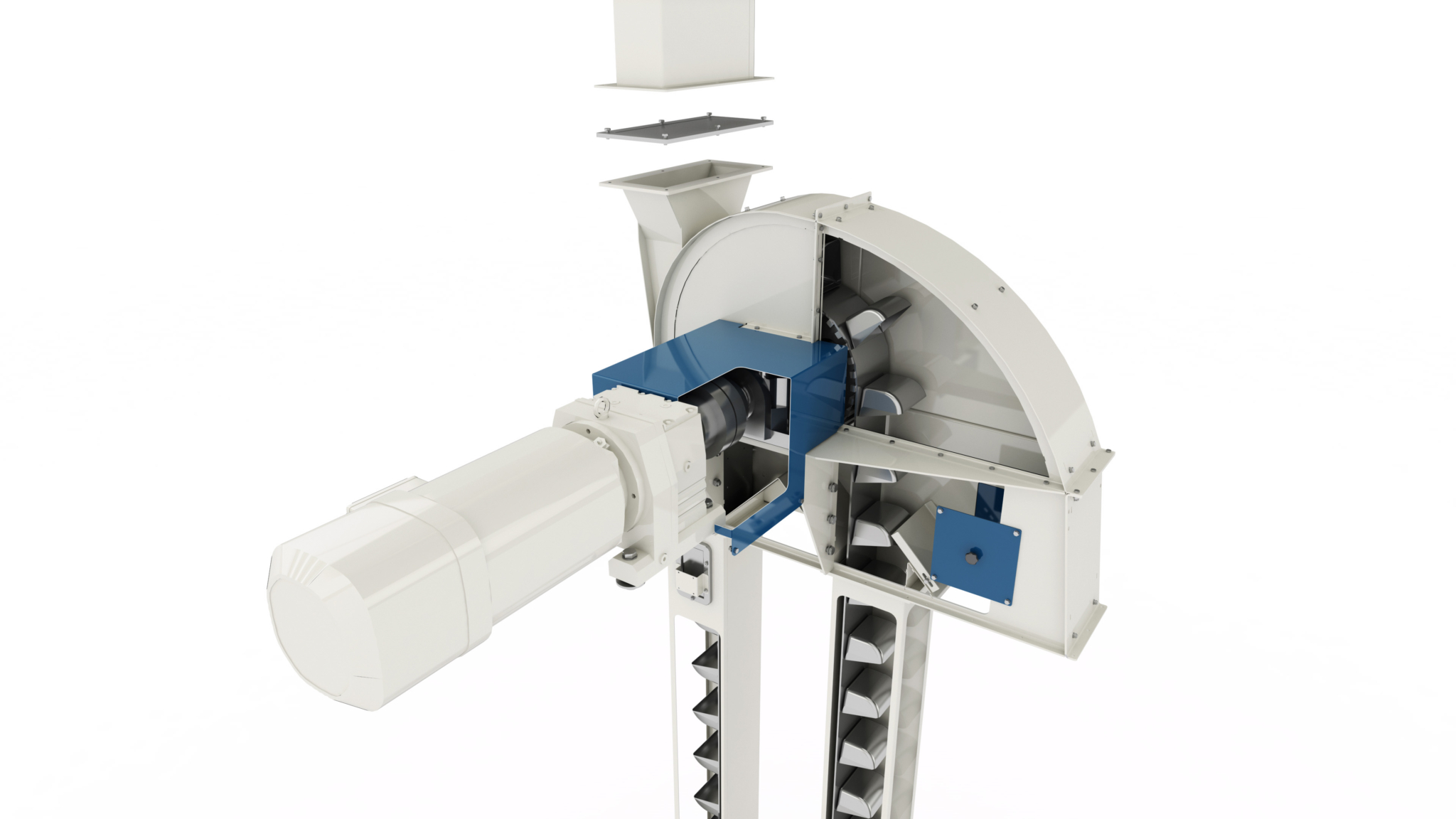

- All-weather equipment (drive housing, covers)

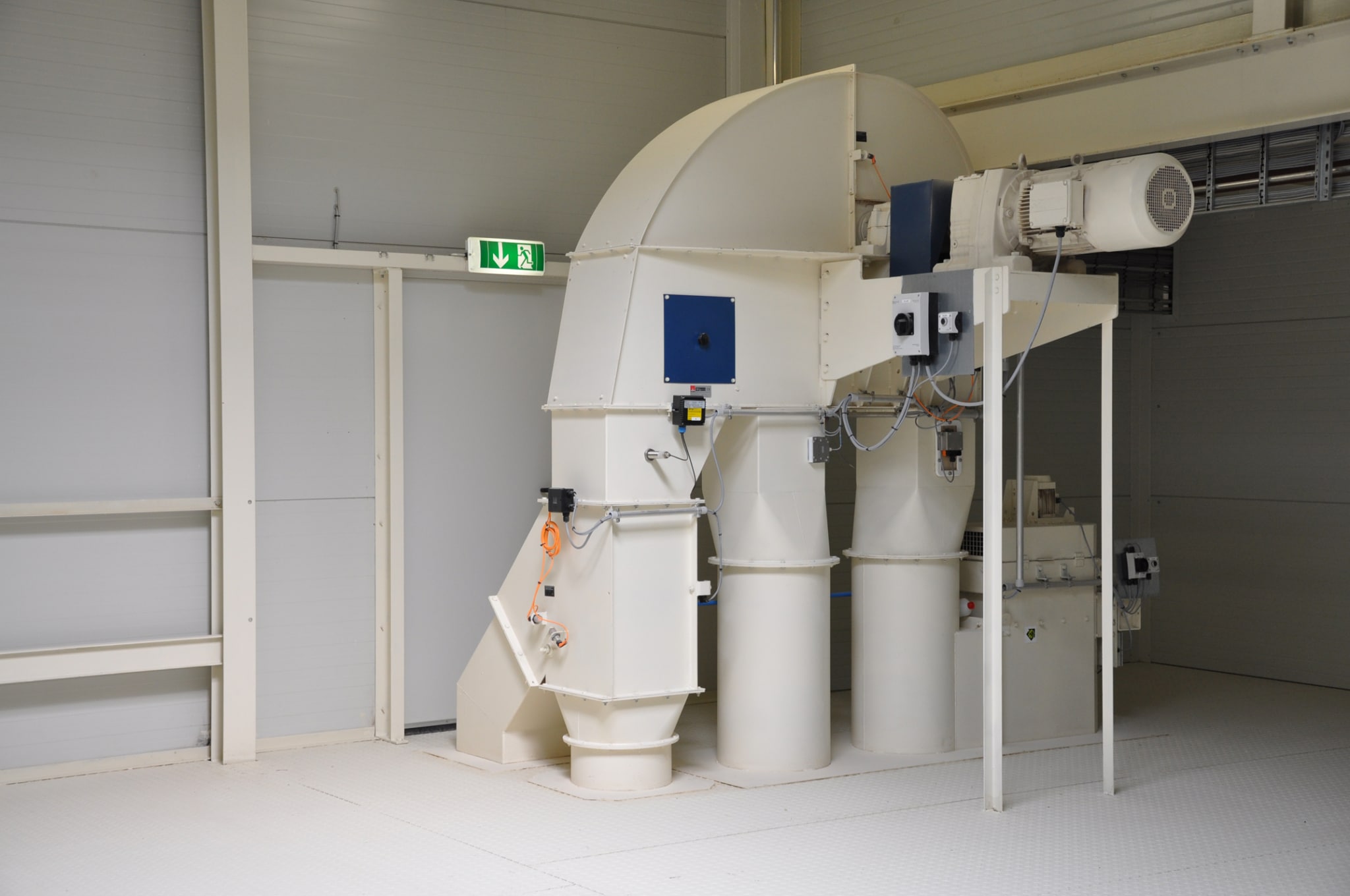

- Tubular legs
- Speed sensor
- Belt misalignment detection

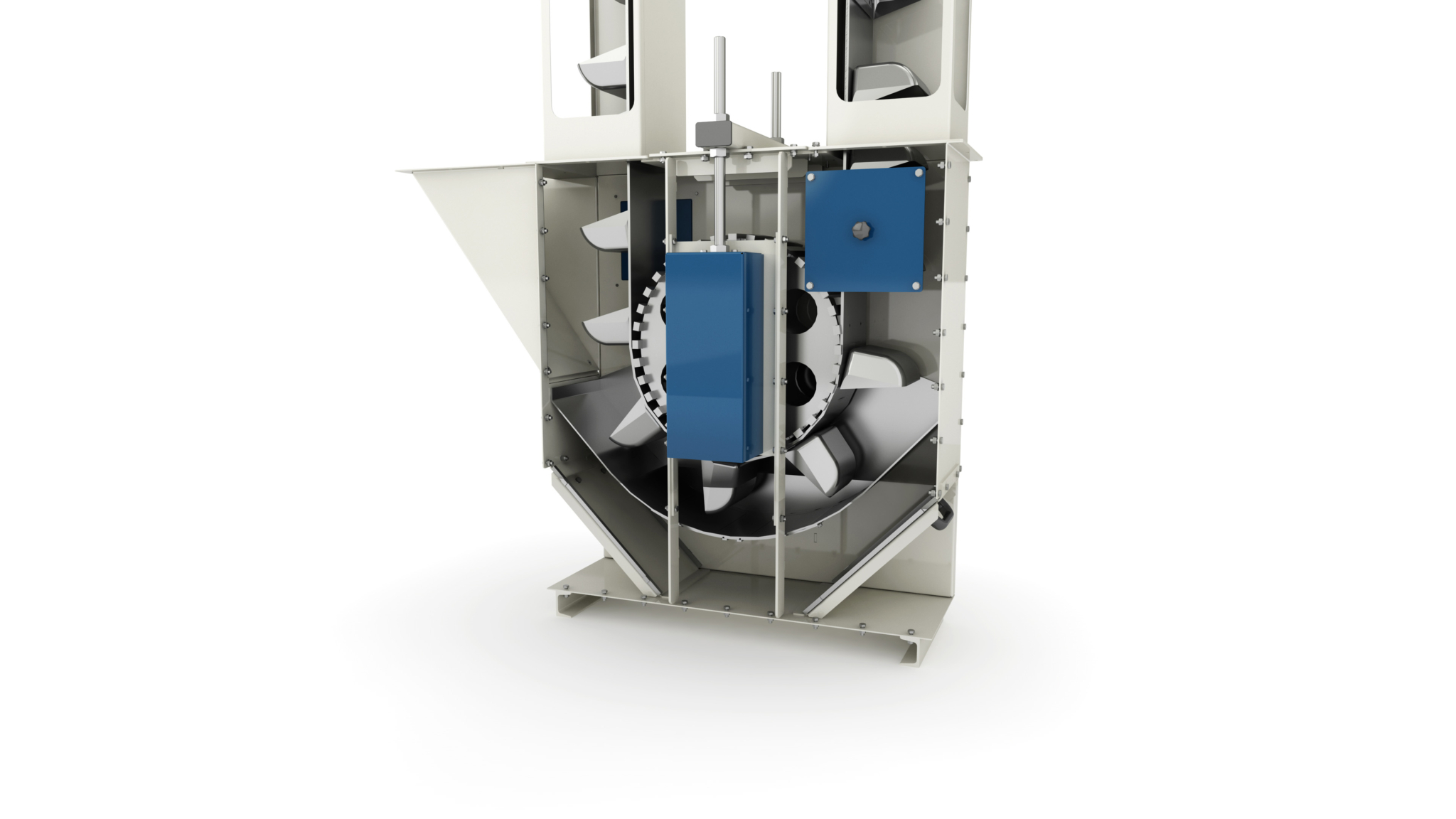

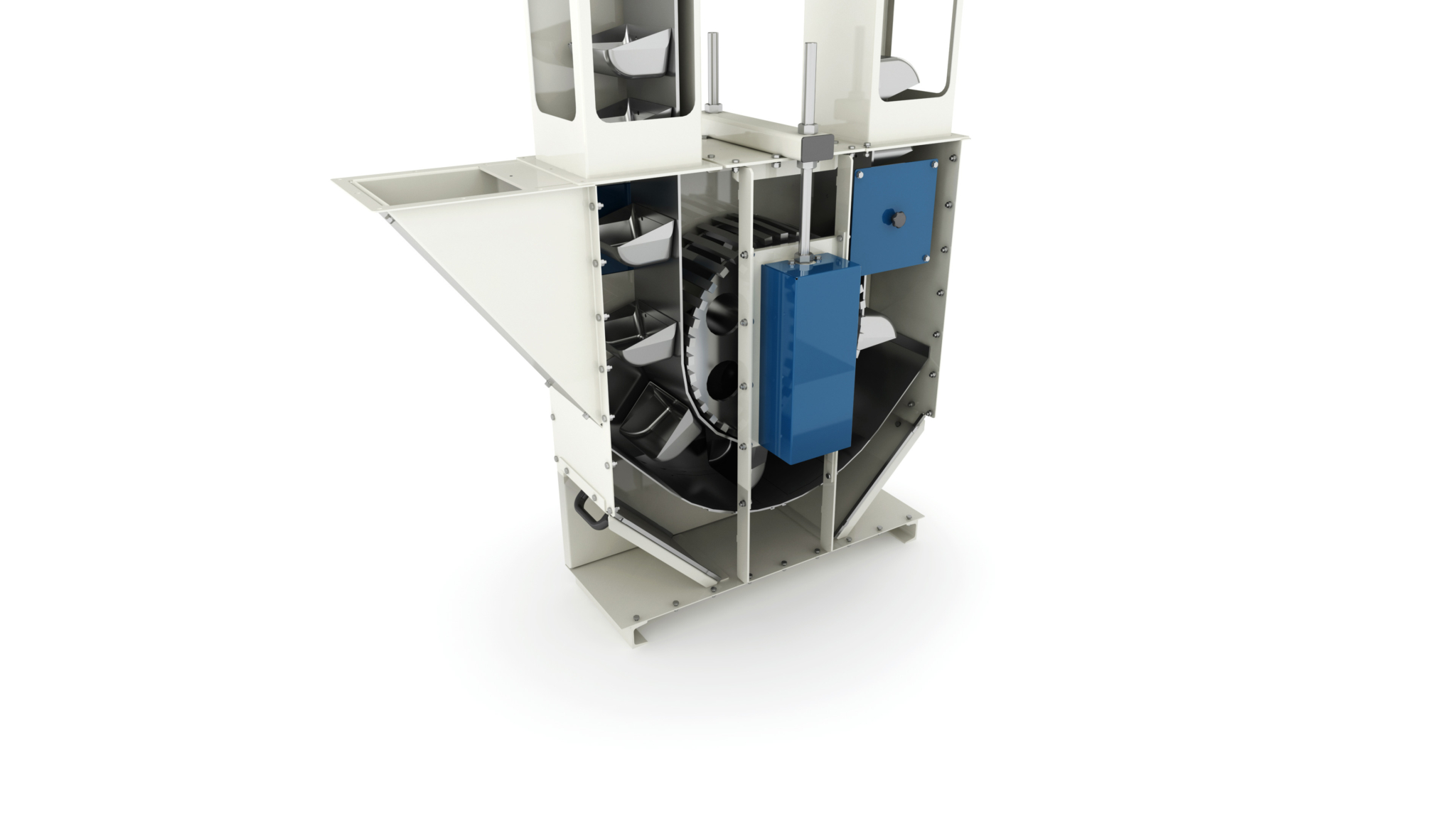

- Residue-free elevator boot
- HDPE or Nylon buckets
- ATEX Zone 22 drive units
- Spotfilter
- Explosion relief plates for legs and head
Downloads
Technical Datasheet
Download
Reliable by design
Equipment
Chain Conveyor
- Low dust, low maintenance, long service life
- Modular widths, speeds & discharge points
- ATEX, stainless & all-weather executions
View details
Flight Conveyor
- Hygiene-first, fully enclosed U-trough
- Handles powders and granulates reliably
- Capacities 30–400 m³/h; incline up to 40°
View details
Your questions answered
FAQ
Granular products (e.g. grains, pellets) and powders or sticky meals. Capacity is application-dependent, with ranges up to about 500 m³/h.
1.8 m/s for gentle handling of pellets or sticky meals; 2.6 m/s for maximum capacity with free-flowing granular products like grains.
Options include speed sensors, belt-misalignment detection, spot filters, and explosion-pressure relief break plates on the legs and head. ATEX 22 zoned drive units are available.
Elevators have service hatches, exchangeable kryptane wear plates, belt tensioners, and oil/fat-resistant belts (also highly acid-resistant) to simplify upkeep and extend service life.
Executions in AISI 304 stainless or galvanised S235 steel, tubular legs, residue-free elevator boots, HDPE buckets, and all-weather drive housings can be specified based on hygiene and corrosion requirements.
