From grain to feed
Liquid Distributor

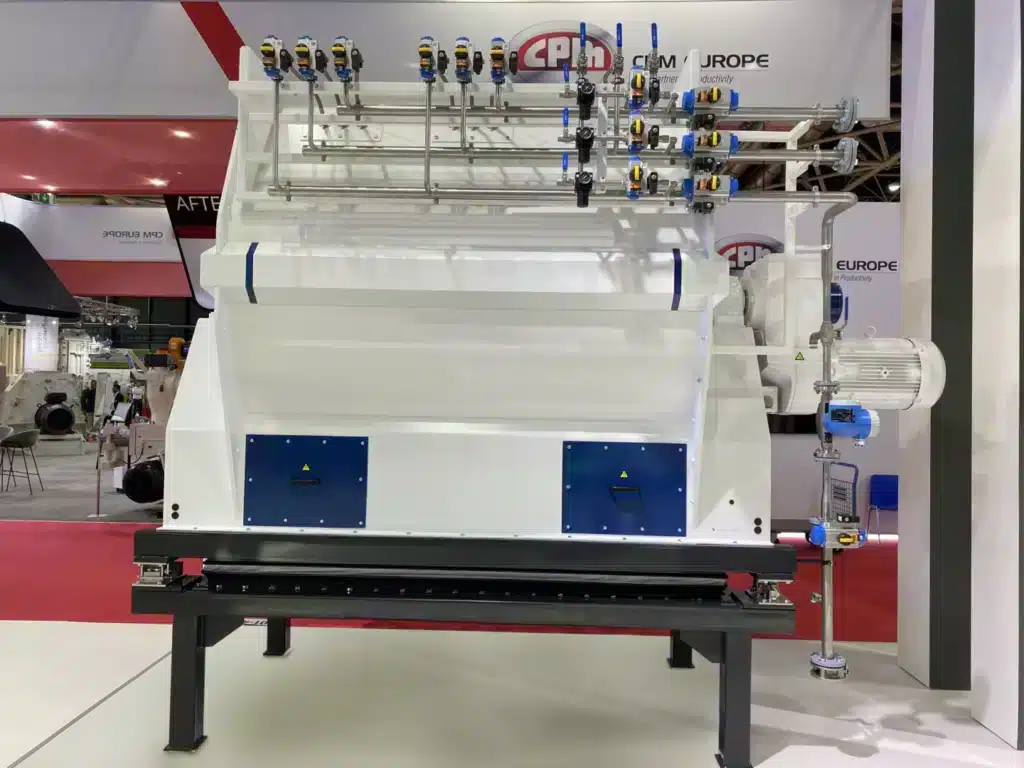

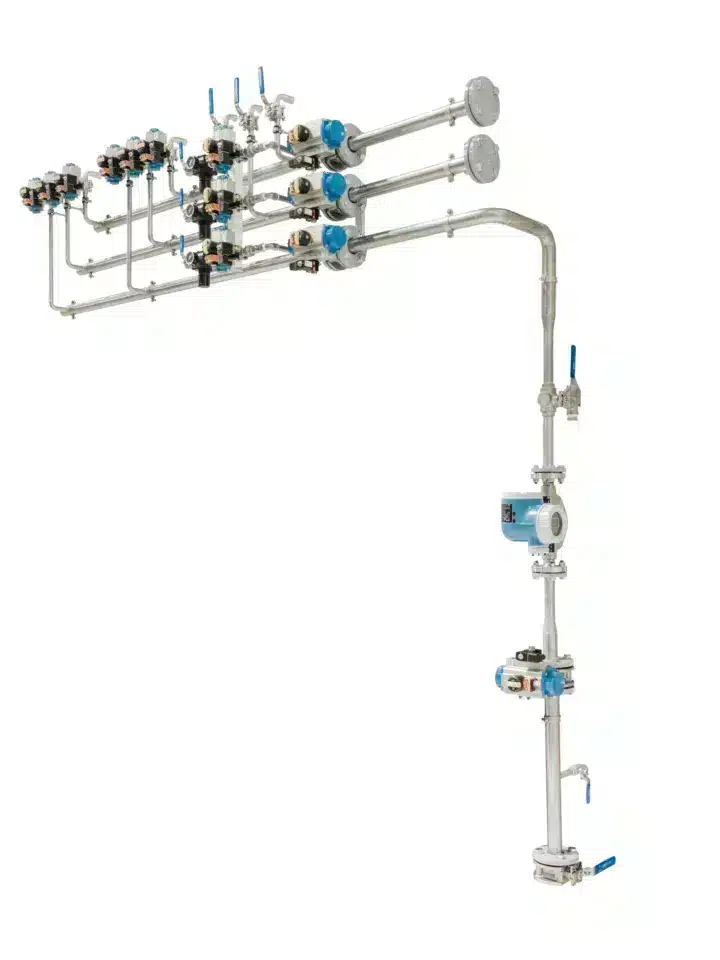

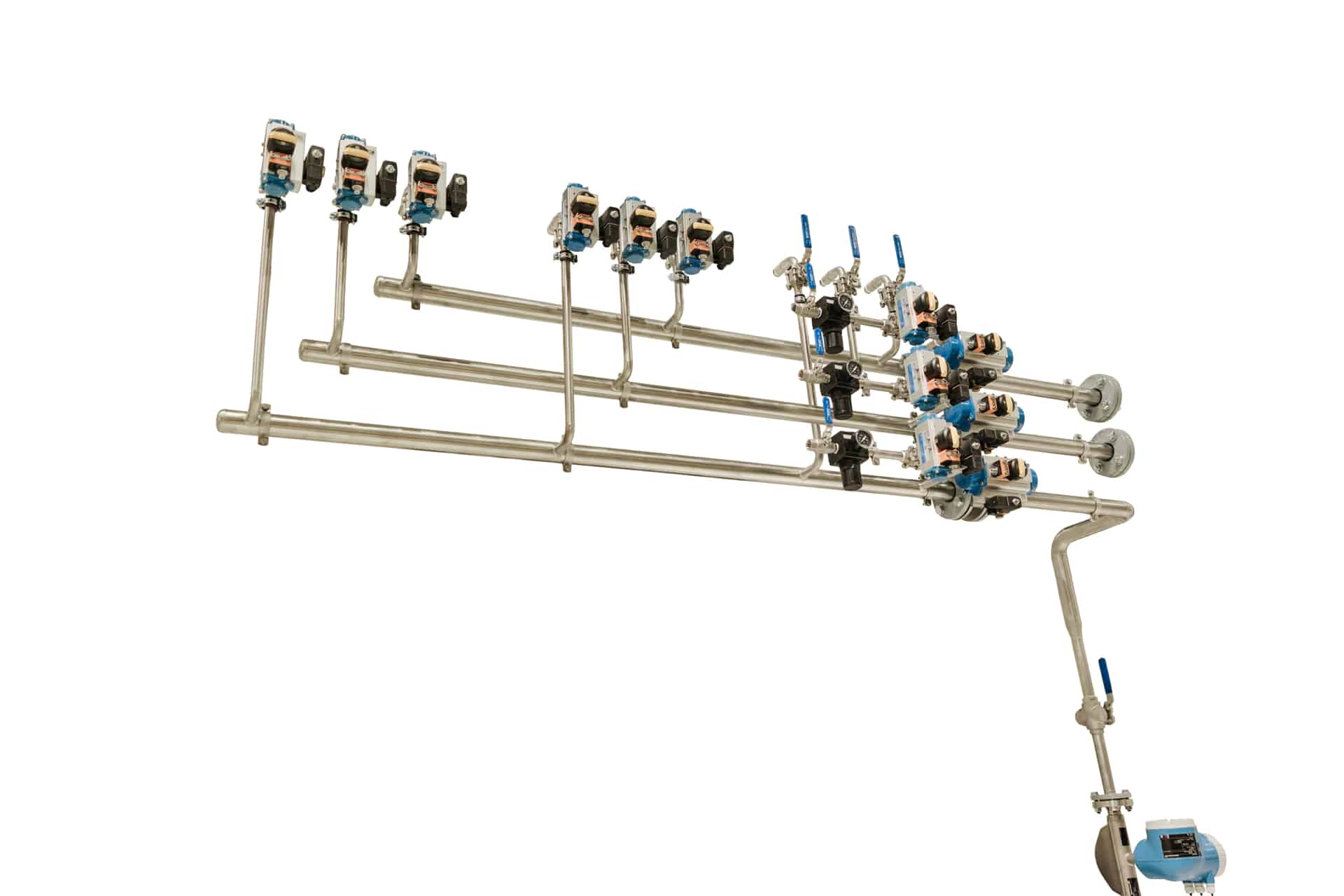

The Ottevanger Liquid distributor directs liquid flow to multiple dosing points with consistent distribution and minimal pressure loss. Each unit is engineered to the process, taking into account liquid properties, dosing time, minimum and maximum dosing quantity, dosing pressure and the number of dosing points. The compact, modular layout saves space around the receiving equipment and provides a uniform arrangement across the plant. A-quality components and a maintenance-friendly design with positioned shut-off valves and discharge options support long service life and short interventions.
- Customer-specific engineering to defined liquid and dosing parameters
- Compact design that saves space around the receiving unit
- Modular installation for a uniform, site-wide arrangement
- Multiple dosing points ensure even distribution and homogeneity
- Maintenance-friendly with positioned shut-off valves and discharge options; A-quality components for reliability
Performance & Applications
Overview
Key benefits
Discover the key benefits of the Liquid distributor, designed for accurate, repeatable liquid splitting with minimal downtime.
- Improved product homogeneity through even distribution over multiple dosing points
- Short inspections and reduced stops thanks to simple nozzle assembly and disassembly
- Consistent plant standard through a modular installation concept
- Small footprint around the receiving equipment for easier integration
- Long service life and dependable operation using A-quality components
Available executions
All machines can be customised. The Liquid distributor is supplied with the following options.
- Available in steel and stainless steel
- Suitable for hot and cold liquids; heated and insulated version possible
- Can be expanded for more than one liquid
- Supplied with the necessary quality labels, on request
Downloads
A detailed Technical Datasheet containing dimensions, material specifications and engineering data is available. Contact us to receive the datasheet and discuss your project requirements.
Technical Datasheet
Download
Fiable par conception
Équipement
Unité de dosage de vapeur intelligente
- RTU compares steam processes
- Data insight for early bottlenecks
- Maintenance-friendly valves and drains
Voir les détails
Ensemble vapeur
- Superheated dry steam via steam-flash
- Steam temperatures up to ~140 °C
- Higher product heat with minimal fouling
Voir les détails
Vos questions répondues
FAQ
Design considers liquid specifications, dosing time, minimum and maximum dosing quantity, dosing pressure and the required number of dosing points.
Yes. The distributor can be expanded to manage more than one liquid.
Units are available in steel or stainless steel and are suitable for hot and cold liquids; heated and insulated versions are possible.
A-quality components, positioned shut-off valves and discharge options, plus simple nozzle assembly and disassembly, reduce downtime during inspection.
Yes. Units can be supplied with the necessary quality labels on request.
