Von Getreide zu Futter
Steam Set

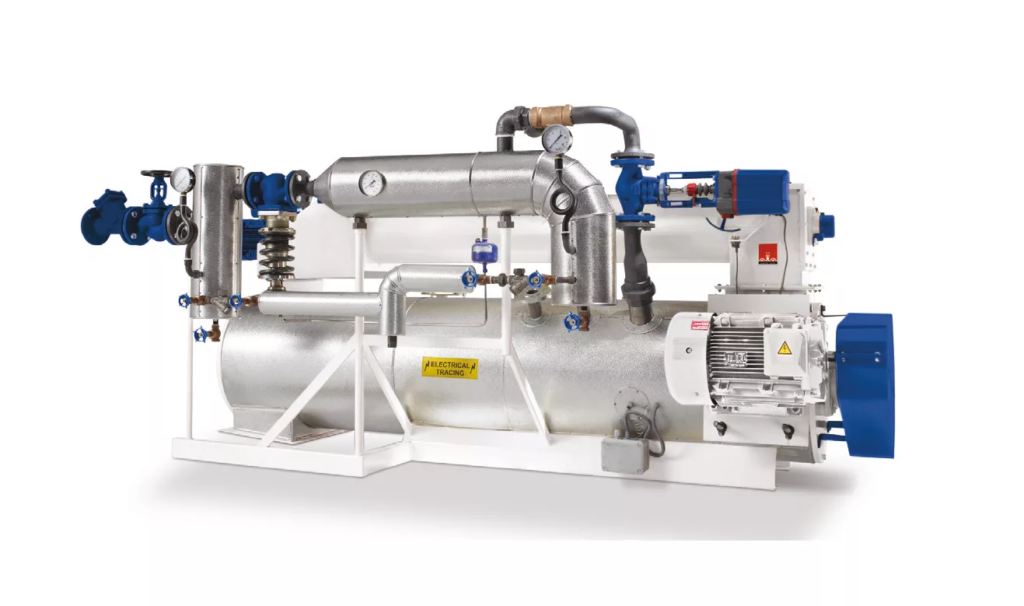

The Ottevanger Steam set supplies dry, high quality steam for conditioners, presses, expanders, and compactors. A pressure reducing unit and drainage vessel create superheated steam that heats product with minimal condensation, improving conditioning and often increasing press capacity by up to 20%. Compact, fully assembled systems are available from 150 to 2,500 kg/h.
- Superheated, dry steam via steam-flash in drainage vessel
- High steam temperature up to approx. 140 °C
- Higher product temperature with minimal fouling from condensation
Performance & Applications
Overview
Key benefits
Discover the key benefits of the Steam Set
- Increased press capacity; ~20% gain is not uncommon
- Improved product conditioning and stability through dry steam addition
- Deactivation of micro-organisms while retaining product characteristics
- Lower condensation, reducing product fouling and cleaning effort
- Energy-efficient operation and straightforward installation
Available executions
Steam sets are supplied within the following capacity range and with the listed equipment.
- Capacity range 150–2,500 kg/h
- Manually operated bellows valve; steam filter
- Reducing unit adjustable approx. 0.8–2.5 bar
- Vertical drainage vessel with 0–10 bar pressure gauge; condensate vessel
- Drainage vessel with 0–10 bar pressure gauge and 0–200 °C thermometer
- 4 condensate valves, 2 thermodynamic steam traps, 2 flush valves
- Pneumatic flap valve with solenoid and open/close position indication
- Electrically operated control valve (Premio Plus) 4–20 mA with position feedback; control voltage 24 VDC or 230 VAC; mains 230 VAC
- Insulated with rock wool and finished with aluminium sheet cladding
Zuverlässig durch Design
Maschinen
Smart Steam Dosing Unit
- RTU compares steam processes
- Data insight for early bottlenecks
- Maintenance-friendly valves and drains
Details ansehen
Dampfset
- Superheated dry steam via steam-flash
- Steam temperatures up to ~140 °C
- Higher product heat with minimal fouling
Details ansehen
Antworten auf Ihre Fragen
FAQ
It generates dry, superheated steam at the required pressure/temperature for conditioning on presses, conditioners, expanders and compactors.
After pressure reduction, steam flashes in a volume-increasing drainage vessel, producing superheated, dry steam with minimal condensation.
Dry steam raises product temperature and improves conditioning; an increase in press capacity of about 20% is no exception.
Steam temperature can reach approximately 140 °C, depending on settings.
A complete, instrumented package including reducing unit, drainage and condensate vessels, valves, steam traps, control valve with 4–20 mA control/feedback, gauges and insulated aluminium-clad finish.
